Air Handling Unit and their types (AHU System)

Functions of Air Handling Unit (AHU System)

  • It conditions air and distributes it to various condition spaces.
  • It controls the temperature and makes it suitable for the conditioned space need.
  • It also controls the moisture content in the air.
  • It also controls the moisture content in the air.
  • It balances oxygen content in the air.
  • It allows fresh air from the outside environment and controls the oxygen level in the air entering the conditioned space.

    Classifications of Air Handling Unit (AHU)

    1. They can be classified according to the nature in which the components are placed

    If all the components are placed at the same horizontal level, it is known as Horizontal Unit.

    If all the components are placed on top of another, it is known as Vertical Unit.

    Horizontal Unit

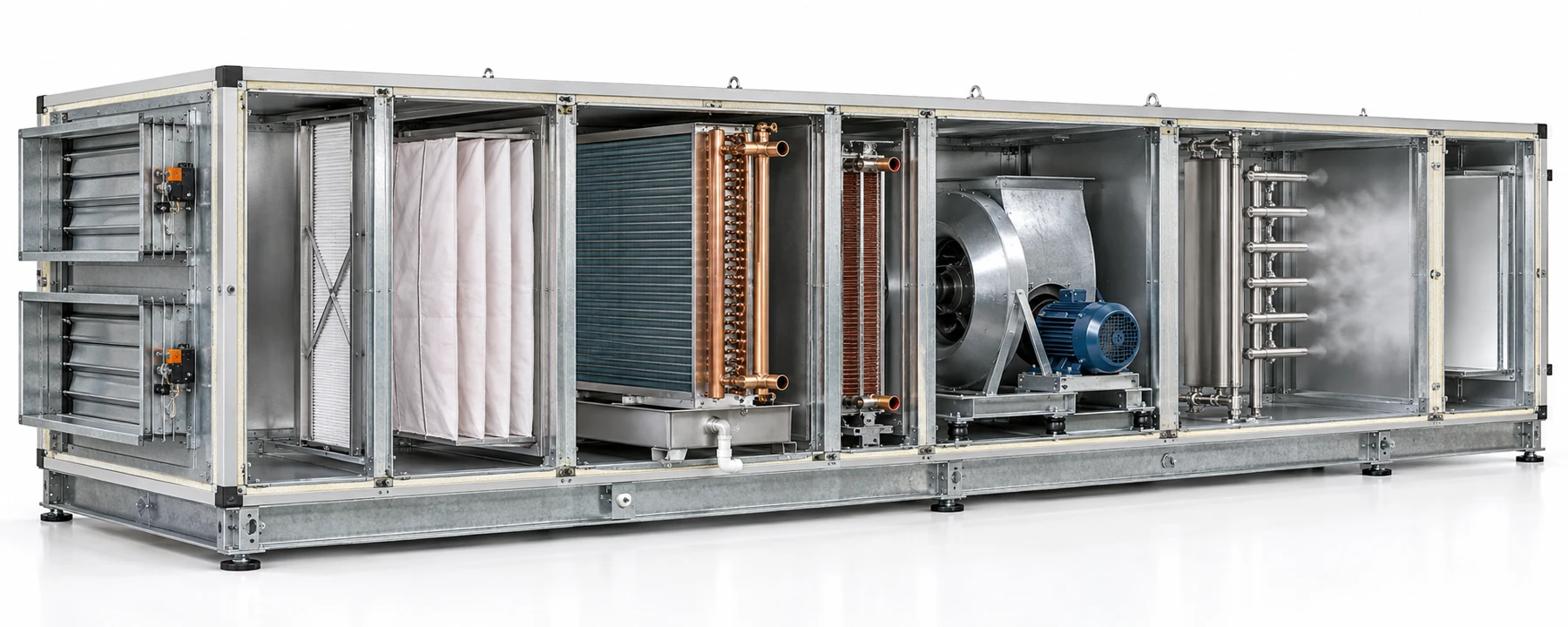

    AHU System

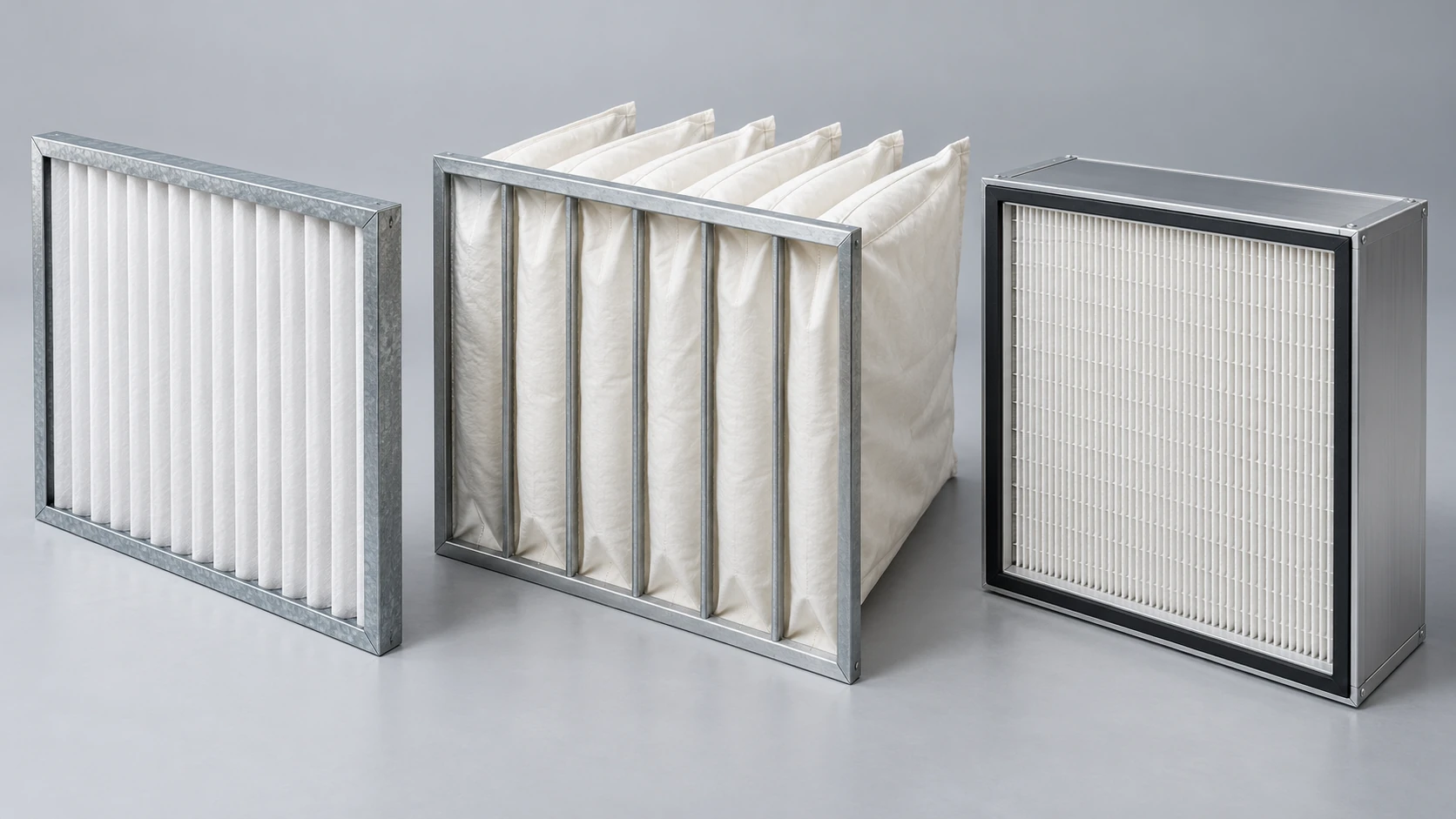

    In the case of the Horizontal Unit, all the units are aligned at the same horizontal level. It has an outlet and an inlet. Once the air enters from the inlet, it gets conditioned and then passes through each of the components. Finally, air exits out from the outlet.

    These kinds of AHUs need more floor space for installation. Each of the components of the AHU needs separate floor space. Hence, the floor requirement is more for horizontal units.

    Noise and vibration need to be carefully controlled.

    Vertical Unit

    AHU System

    In the case of Vertical units, some or many of the components lie on top of each other. The components are not installed at the same horizontal level. Hence, the floor area requirement for this kind of AHU is less as compared to Horizontal Units. In general, Vertical Units are placed in the fan room or the AHU room.

    2. They can be classified on the basis of the location of the fan with respect to the cooling coil.

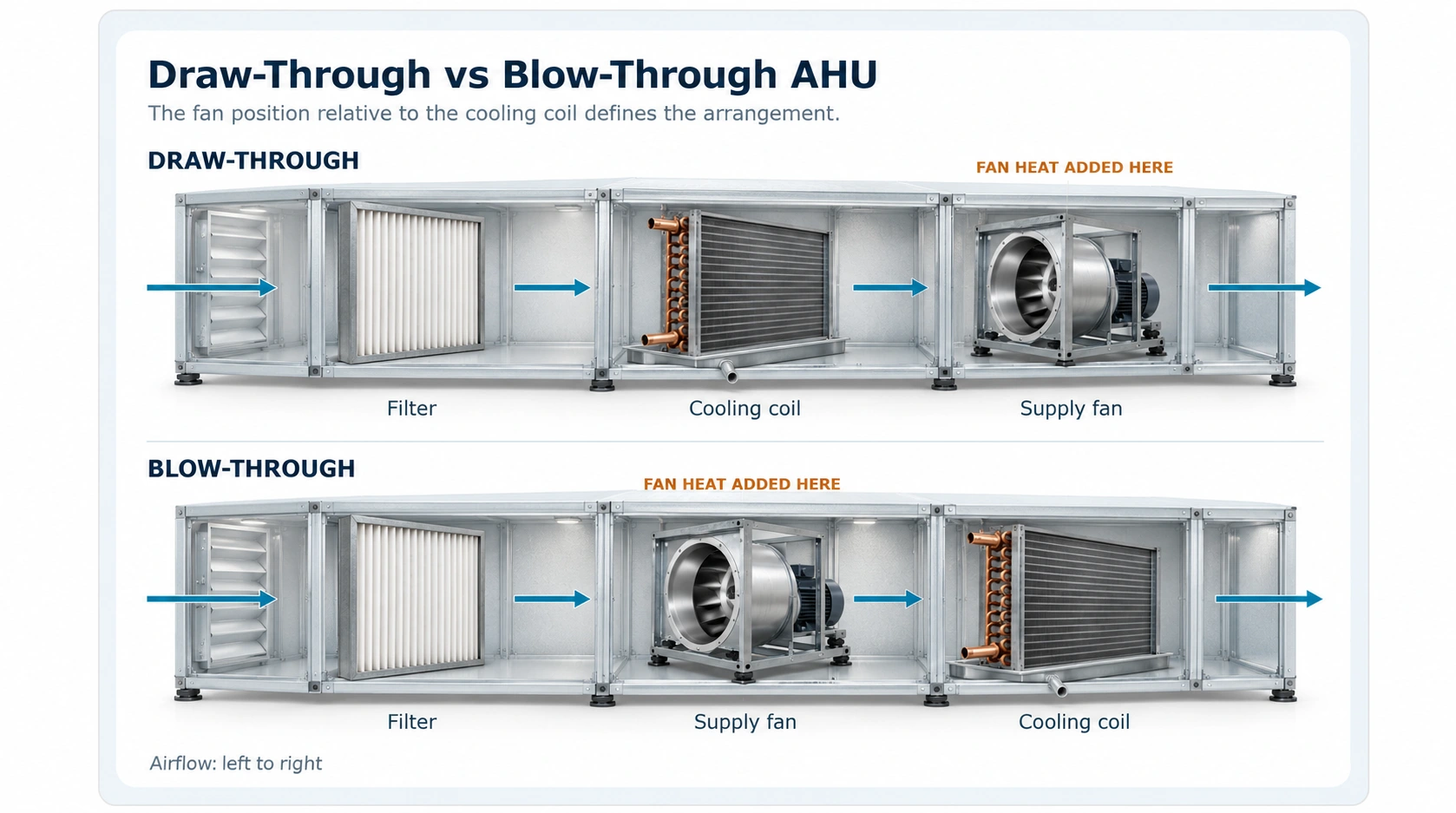

    The AHU can be Draw-through or Blow-through.

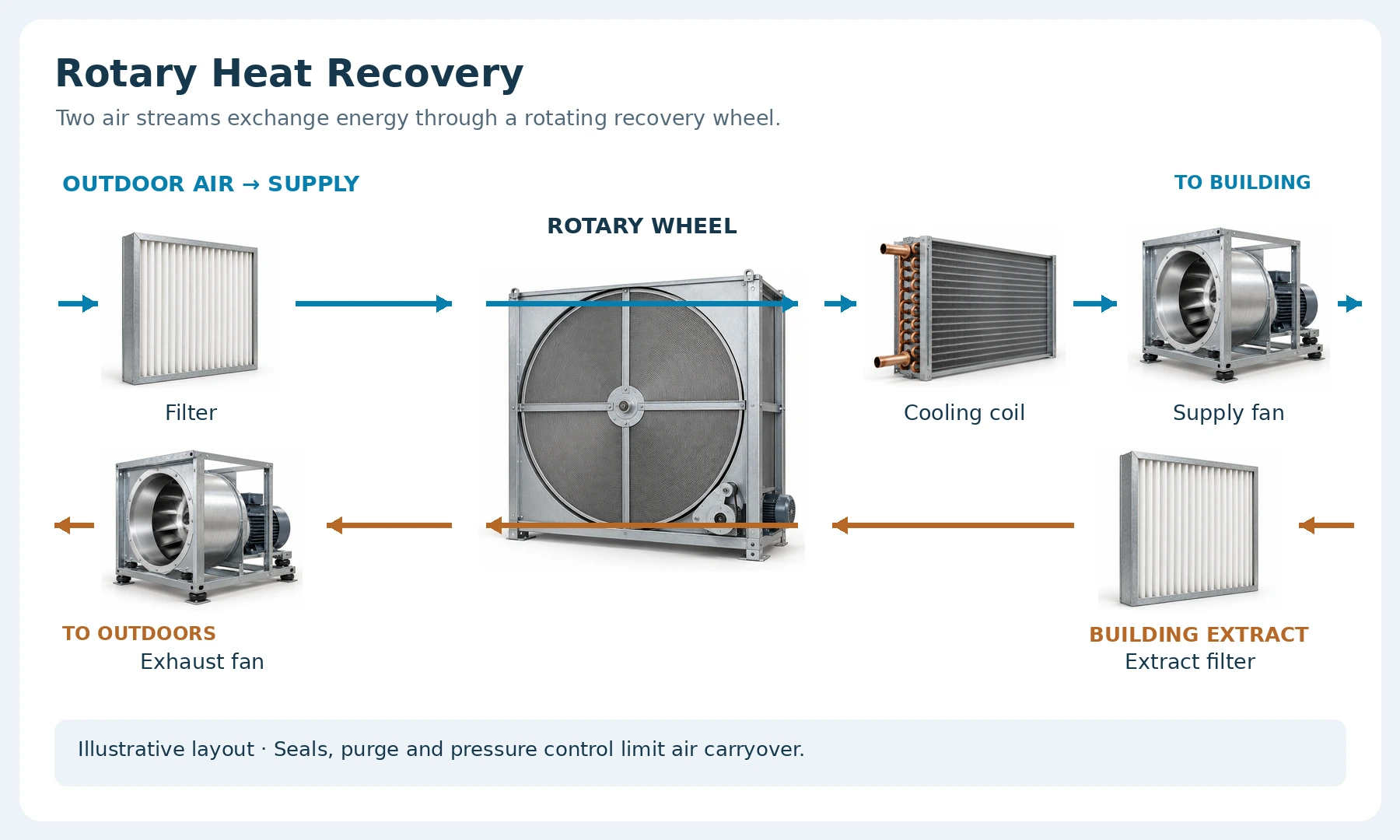

    Draw-through unit

    The Draw-through unit has the supply fan after the cooling coil section. The conditioned air is evenly distributed over the entire surface of the coil section. So, if there is a requirement of even distribution of air, Draw-through units are preferred.

    These are the most widely used AHUs because they provide better efficiency. However, the cost of the Draw-through unit is more as compared to the Blow-through unit but this can be justified given that it has greater efficiency.

    • Blow-through unit
    AHU System

    The Blow-through unit has the supply fan located before the cooling coil section. The cooling coil is placed downstream of the fan. The fan cools the air slightly before the air enters the cooling coil section. In the Draw-through unit, the air was first getting cooled when it passes through the cooling coil. Then, it is blown into the ductwork. However, in the case of the Blow-through unit, the air temperature is decreased to some value when it passes through the fan. Later, it passes through the cooling coil to further reduce its temperature. Blow-through units are generally used in multi-zone AHUs.

    3. Depending upon the number of zones served by an AHU, it can be classified as Single-zone AHU or Multi-zone AHU.

    Single-zone AHU

    Single-zone AHU

    Single-zone AHU, as the name suggests serves only one zone.

    They are compact in size given that they are serving only one zone.

    The capacity of these AHUs is less.

    Multi-zone AHU

    Multi-zone AHU

    Multi-zone AHU serves more than one zone. Hence, the capacity of these AHUs is supposed to be more. They are also bigger in size as compared to single-zone AHUs.

    4. Depending upon the manufacturing of the AHUs, they can be classified as factory-fabricated or custom-built AHUs.

    Factory-fabricated AHU

    Factory-fabricated AHU

    They are fabricated in manufacturing plants as the name suggests. They are high-quality built.

    They have a lesser price because each of the components is properly designed and the production takes place in bulk quantity.

    Custom-built AHU

    Custom-built AHU

    They provide more flexibility in structure, component selection dimensions, etc.

    When the on-site requirement of AHU is such that the factory-built AHU is not available, they are manufactured on-site based on the dimension, weather conditions, etc.

    Since each of the components is custom-built so the price of these AHUs is more.

    5. Depending upon where the AHU is placed, it can be classified as Rooftop AHU or Indoor AHU.

    Rooftop AHUs

    Rooftop AHUs

    They are mounted on the roof. They are made up of heavy gauge galvanized steel or aluminum sheets. They are also made corrosion resistant and weather resistant. Since they are placed on the roof, so they have to experience a lot of extreme weather conditions, extreme temperature, rain, etc. So, all the factors are taken into consideration while designing rooftop units. Hence, they become very expensive. Also, since they are exposed to the environment, the damage and failure of the components are most likely to happen. Therefore, all the components are placed inside the casing.

    Indoor AHUs

    Indoor AHUs

    They are placed in the fan room or the AHU room. If the size of these AHUs is very less, they can also be hung in the ceiling.

    To learn more about AHU System or HVAC in detail, kindly follow the given link: https://augmintech.com/
